Facts

General information

Increase font size Text size

The Allianz Arena, opened in 2005, was designed purely as a football stadium. The architecturally unique arena was constructed in under three years. Read on for comprehensive facts and figures about the state-of-the-art stadium in the heart of Europe.

Referendum

A referendum produced an overwhelming 65.8 percent majority in favour of the project and 34.2 percent against. The requirement for a quorum of 10 percent of all those entitled to vote was also met. The turnout of 37.5 percent was the highest ever for a referendum held in Bavaria.

Venue

Munich-Fröttmaning

Construction dates

Foundation stone laid on 21 October 2002
Handover from Alpine Bau GmbH completed on 30 April 2005

Owners

On 27 April 2006, FC Bayern Munich temporarily acquired 100% of the shares in the Allianz Arena after purchasing TSV 1860 Munich’s 50% share in the holding company, Allianz Arena Munich Stadion GmbH, which the clubs had founded together.

However, TSV 1860’s right to repurchase their 50% share in Allianz Arena Munich Stadion GmbH until 30 June 2010 was officially rescinded on Friday, 25 April 2008. All three parties agreed to relieve TSV 1860 of its obligations, which were then transferred to FC Bayern Munich AG, currently the Allianz Arena’s only stockholder.

As a result of 1860 München's relegation at the end of the season 2016/2017 the lease contract between TSV München von 1860 GmbH & Co. KGaA and Allianz Arena München Stadion GmbH, a wholly-owned subsidiary of FC Bayern München AG, was cancelled. It means the Allianz Arena is no longer TSV 1860 München's home ground. The agreemen precludes 1860 returning to the stadium at a later date.

Opening games

30 May 2005: TSV 1860 3-2 FC Nuremberg
31 May 2005: FC Bayern 4-2 Germany

Construction cost

€340 million

Capacity

  • Total: 75,024 seats (during national games)
  • standing area : total 15,794 (9,136 in the South and 6,658 in the North Stands)
  • Capacity during International Games: 70,000 (no standing areas)
  • 2,152 business seats
  • 106 VIP boxes of various sizes accommodating 1,368 guests
  • Press club with about 350 seats
  • 227 special seats for the disabled at main entrance/exterior ground level (no change of level)

Parking

  • 9,800 parking places in four x four-storey Esplanade car parks (the largest in Europe)
  • 130 parking spaces for the disabled
  • Entrance height: 2 metres
  • 1,200 parking places on two levels in the stadium
  • 350 coach places (240 to the north and 110 to the south of the Esplanade)
  • Multi-storey car park for visiting fans: 900 parking places with 20 parking spaces for disabled people
  • Exit via licence plate recognition. Registration and payment of the parking fee in advance via the website or on site at eight machines (two per car park), as well as three staffed stations within the Allianz Arena

Inside the Arena

6,000 m² of catering facilities devided into following sections:

  • 28 kiosks
  • 2 fan-restaurants (one in the north- and one in the south-stand), each with 1,000 seats
  • Bistro accommodating 400 people
  • Business Club with 2,152 seats
  • 106 VIP boxes of various sizes accommodating 1,374 guests
  • Press club with about 350 seats
  • Mixed Zone (520 m²)
  • offices and conference rooms
  • comfortably appointed media areas
  • a Kids Club
  • 54 ticket counters
  • FC BAYERN STORE
  • FC Bayern Museum (Germany's biggest club museum)
  • 4 changing rooms (FC Bayern, 2x Guest); 4 for coaches ; 2 for referees
  • 2 warm-up rooms, each 110m²
  • 1,121 WC-cubicles in the Arena
  • more than 750 screens in the Arena

Interior of the Arena

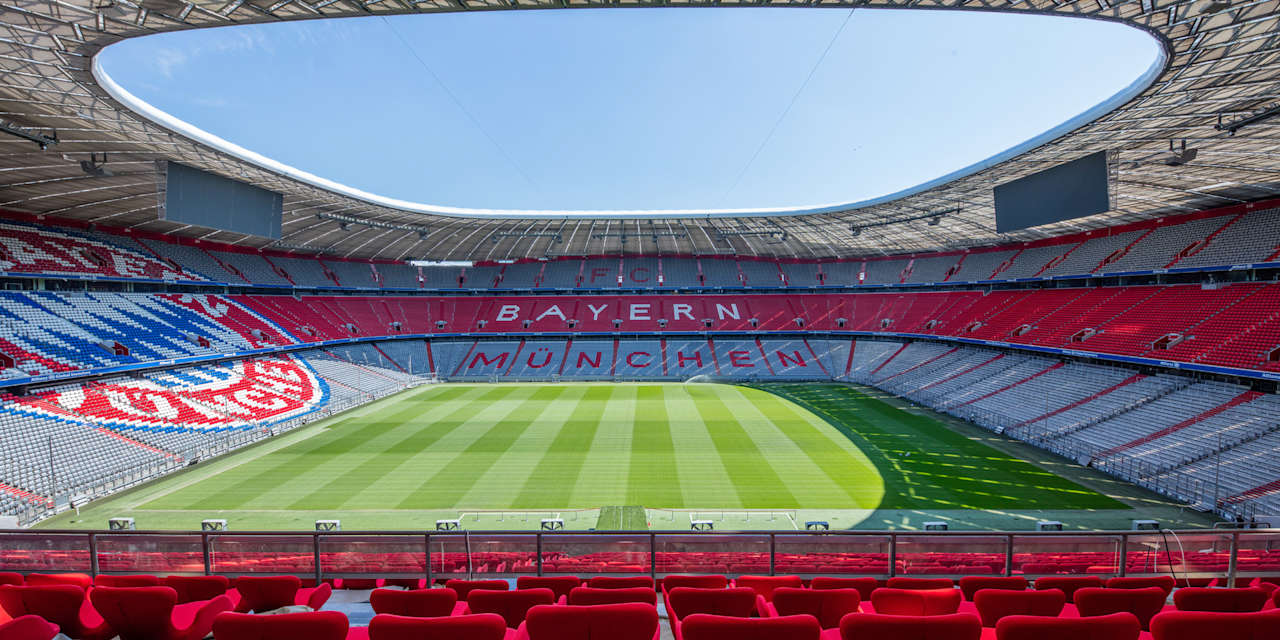

  • Pitch: 68 m x 105 m, pitch total: 72 m x 111 m
  • Total surface (barrier to barrier): 120 m x 83 m
  • Spectator distance from pitch: 7.5 m minimum
  • Pitchside barrier height: approx 1.2 m
  • 2 x 200 m² LED Video Walls in 16:9 format, 42.5 m above ground. Additionaly 2 36,80 mLED Video Walls on each back .

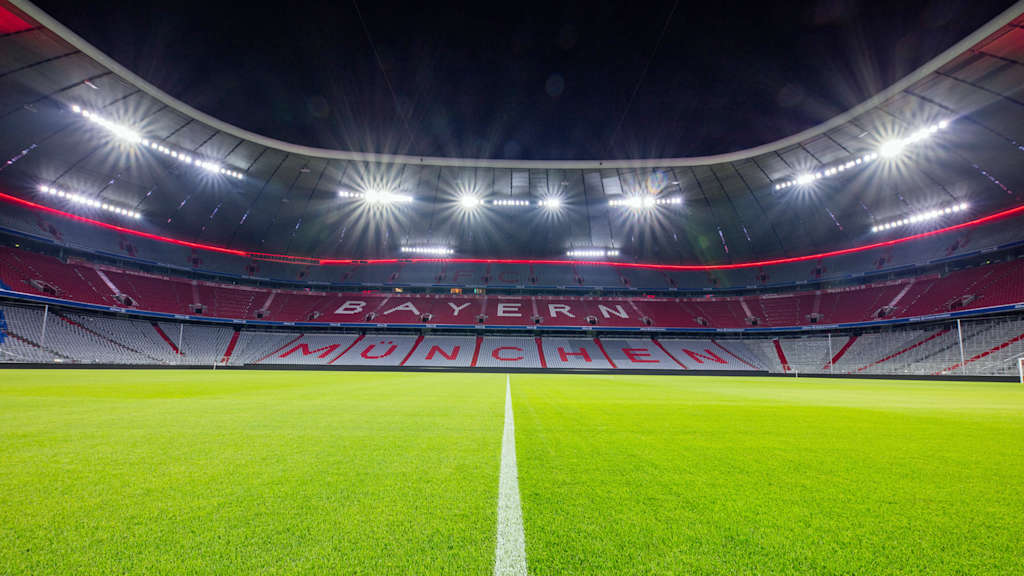

  • 296 floodlights, 45 m high
  • 20 Moving-Heads for entertainment lighting

    Seat row gradients:
  • Lower tier: approx 24°
  • Middle tier: approx 30°
  • Upper tier: approx 34°

Arena & Esplanade dimensions

Stadium dimensions: 258 m x 227 m x 52 m (gross figure)

  • 7 levels
  • Admeasurement: 840 m
  • Façade and roof: 66,500 m² in total, comprising 2,784 inflated panels
  • Roof area: 38,000 m²
  • Façade: 28,500 m²
  • Illuminated area (16 million colours; LED technology); 25,500 m²
  • Area occupied by stadium: 37,600 m²
  • Total site area: 171,000 m²
    Esplanade dimensions: 543 m x 136 m x 0-12 m
  • 4 levels
  • Admeasurement: 1.358 m
  • Covered area: approx 73,900 m²


Nuts and bolts

How much concrete was used building the Allianz Arena? What pressure does it take to inflate the panels? How big are the showers? Here you can find all the official statistics from A to Z about the Allianz Arena. A real tresure trove for statisticians, construction experts and those who might want to be.

  • Specifically lit display of Allianz Arena logo: LEDs

    • Blue LEDs, 40mm interval, 44,100 LEDs per unit, LED type NSPB 520 S
    • White LEDs, 25mm interval, 111,300 LEDs per unit, LED type NSPW 510 BS
    • Total of 155,400 LEDs per logo:


    Dimming

    • Can be dimmed via potentiometer
    • Insertion of converters
    • Blue and white LEDs can be dimmed separately in each logo
    • Colour of lights (combination with façade) controlled in technical centre


    Technical description of letters

    • Profile 4mm thick, 2mm aluminium foil and painted with double component paint
    • Depth of letters: 25cm, total height 4m
    • Length of Allianz Arena logo: 39.83m
    • Total weight of letters: approx. 2,500kg


    Supports, steel constructs

    • Steel frame h = 3.8m/5m per letter to support and reinforce the zinc-coated construction
    • Total weight of steel construct: approx. 2,750kg

    • Concrete used in stadium: approx. 120,000 m3
    • Steel used in stadium: approx. 22,000 t
    • Foundations: 180 t, size of a family house, loading up to 1,500 t
    • 350 inclined supporting pillars, 50 to each level
    • Supporting pillars (cross-section: 65 cm, length: 6 m) have maximum bearing load of 10,000 kN (~1,000 t)
    • 8 stairwells, 15 cascade stairways at intervals of 45 m
    • External façade (under inflated panels):
    • Area: approx. 12,000 m², glazed area: approx. 5,000 m²
    • Internal façade (Business Club):
    • Area. approx. 350 m², glazed area approx. 300 m²
    • Executive boxes:
    • Area: approx. 3,000 m2, glazed area: approx. 2,000 m2
    • Tiers:
    • 2,446 pre-cast elements
    • 3,985 stair elements laid on terraces
    • 132, 000 drill holes for the 66,000 seats
    • Esplanade (4 car parks each on 4 levels):
    • Frame construction (supports and bracing beams)
    • Floor area: 270,000 m²
    • Concrete: 85.000 m³
    • Steel: 14.000 t
    • Structural steel: 1.400 t
    • Promenade (asphalted main connecting level)
    • Area: 28,000 m² floor area with 8,50 m ceilings
    • 1,033 pre-cast sections on 128 pillars and 88 load bearing points
    • External circumference: approx. 1,200 m

    • 2,874 rhomboidal inflated ETFE foil panels form the 66,500 m² roof and façade
    • Biggest membrane shell in the world
    • Data on the ETFE foil (Ethylene Tetrafluoro-ethylene):
    • Thickness: 0.2 mm
    • Weight: 350 g/ m²
    • Longitudinal/transverse tensile strength: 52/52 N/mm²
    • Longitudinal/transverse tensile stress at 10% elongation: 21/21 N/mm²
    • Longitudinal/transverse elongation at breaking point: 600/600 %
    • UV permability: 95%
    • Visible light permability: 93%
    • Colour: transparent (roof area), translucent white (rest of façade)
    • 1,380 non-standard panels:
    • Total area: 7.6 to 40.7 m²
    • Length: approx 3 to 10 m
    • maximum width: 1.9 to approx. 4.6 m
    • Maximum diagonal length: approx 17 m
    • Fans keep the panels inflated at a constant pressure of 0.035 bar (maximum possible pressure 0.08 bar)
    • In case of snowfall, 12 pressure-monitoring points ensure the correct pressure adjustments to allow for snow up to 1.6 m.
    • Lifespan approx 25 years, non-flammable, exceptionally resistant to heat and cold, self-cleans with rain
    • 19 panels at the 51.41 m level can be opened to ensure proper ventilation.
    • Each of these special hydraulic panels can carry up to 8 t and has a wind pressure resistance of 22 t
    • The panels are non-loadbearing

  • The installation of the new LED lighting on the façade began in October 2014. It took around 100 days to install. This system makes the Allianz Arena Germany’s first and Europe’s biggest stadium with surrounding outdoor LED lighting for dynamic lighting moods. 1,506 of the 2,760 panels illuminate when the lighting is active. This means an area of 26,000 m² of lit up outer-material is visible to fans and passers-by, an area equal to that of three and a half professional football pitches. Instead of the mere three colours (red, blue and white) that the old system produced, the new lighting system produces up to 16 million different colours enabling the finest colour nuances and combinations.


    • Modifications
    • Concealed behind the highly homogeneous and plastic appearance, are more than 300,000 LED lights on around 6,500 Philips ColorGraze lights. In each air cushion there are approximately 285 LEDs mounted onto seven to eight lights.
    • A total of 45 tons of material have been installed, including lights, several hundred control components ("Data Enabler") and more than 5,000 metres of network cable. The total weight is equivalent to that of over 100,000 footballs.
    • Austrian mountaineers mounted the LED lights and system components at heights of up to 25 meters. The installation was carried out in sections of four rhomboid panels in width to eleven panels in height. 250 lights are delivered and installed every week.
    • The individual components and their mounting hardware were assembled in the Allianz Arena, raised to mounting height and then put in place by façade climbers and networked with the surrounding elements.
    • Getting the precise alignment of the ColorGraze bars onto the sometimes differently shaped rhomboid panels was only possible with a specially manufactured, saber-tooth shaped mounting device.
    • The lights are equipped with special optics and mounted on the underside of the panels. The lenses are customized to scatter the light onto the surface of the rhomboids.
    • The modifications team included a lighting designer, product and software developers as well as architects, electrical engineers, façade climbers and fitters.

      Technology
    • The previous lighting system used analog technology with conventional fluorescent lighting. Philips replaced this technology with a fully digital system, consisting of digital lights (LED) networked with intelligent control system software.
    • Philips used ColorGraze Powercore MX4 lights with a range of different optics. When lined up they are equivalent to a distance of around 7.5 kilometers. Philips has already fitted over 200 kilometers of these lights worldwide.
    • The lifespan of the LEDs averages around 80,000 hours, which is equal to the duration of approximately 53,000 league matches (excluding extra-time). This hugely reduces the maintenance costs.
    • The new Philips lighting is 60% more energy efficient than the previous technology used. Per year this saves us approximately 100,000 kilowatts of electricity and our CO2 usage has been cut by 362 tons.
    • The lighting system is very robust. It can withstand the most adverse weather conditions with temperatures as low at -50 degrees Celsius while in operation, and -80 degrees Celsius when idle.
    • Philips ColorKinetics are developing systems based on the technology used in the Allianz Arena in architectural landmarks all around the globe. These include the Empire State Building in New York, the London Eye, the Bosphorus Bridge in Istanbul and the Gateway of India in Mumbai.

      Digital Control and Maintenance Platform
    • The digital control can control more than 300,000 points of light in 16 million colours. Even the finest nuances, intensities and gradients are possible. Image repetition rates guarantee fluid moving sequences of up to 40 frames per second.
    • Philips ActiveSite facilitates the operation as well as the monitoring and maintenance of the system. The cloud-based platform provides a central cockpit for an overview of the main functions.
    • The content management system facilitates the design and control of content. In addition, it provides comprehensive tools for analysis and maintenance: from hardware management through integrated real time reports and e-mail notifications to the detailed system diagnostics.

      Lighting Concepts
    • The Swiss architectural firm Herzog & de Meuron developed the curatorial concepts for the new lighting. They were also responsible for the architecture of the Allianz Arena. The colour dynamics put emphasis on stillness and elegance and awaken, in addition to the static illuminations, a direct association with football.
    • On non-match days, elegant colour dynamics in red, white and blue are planned. To this end, Herzog & de Meuron has designed twelve dynamic transition scenarios that can be classified into four categories: form-based waves, pixel-based clouds, column-based gradients as well as line-based rounds.
    • Different lighting scenarios are possible and can be changed depending on the activity in the stadium: on non-match evenings standard dynamic lighting is planned whereas for home and away matches a concept of static illuminations is used and for special events the lighting is a custom designed program.
    • The architecture of the Allianz Arena is unique worldwide. Its facade consists of the largest membrane shell in the world. It is about 35 metres high and has an outside surface area of 29,000 m². The Allianz Arena celebrates its tenth anniversary in 2015.

    • Total area: 38.000 m²
    • Primary roof structure (60%):
    • 48 radial main beams, approx 65 m long and weighing up to 106 t
    • Total of 5,300 t S355 steel
    • Secondary roof structure (cross beams, 40%)
    • Forms a rhomboidal ‘steel net’ within which the panels are supported
    • In the form of rectangular tubing 180 mm x 180 mm x 5-16 mm
    • Total of 3,400 t S355 steel
    • 50 m high free floating construction
    • Maximum load bearing stress, own weight plus full load of snow at centre: 5,000 kN (~ 500 t)
    • Maximum load bearing stress at edge: 3,300 kN (~ 300 t)
    • Deflection under load at edge with full snow load and wind: 55 cm
    • Roof panels have a transparent inner surface
    • Retractable internal roof (blind and theatre usage) opened and closed by 51 electric motors

    • Size: 68 m x 105 m net and 72 m x 111 m gross - Total height: 8,000 m² - Pitch: 0.5% incline towards the middle
    • Natural grass: approx. 650 rolls of 1.20 m x 10 m; 38 mm dicksode; 800 kg per piece of lawn
    • Building area: 4,500 m³ of antifreeze gravel was piled up for leveling out the area
    • Base: 10 cm drainage layer (sand) - heating pipes - 13 cm lower turf support layer - 9 cm upper turf support layer
    • Drainage: 14 drainage pipes each 111 m, 100 mm diameter, 2 km length
    • Heating: Hoses 3.2 cm height and 27 km length, 3 insulated pipes attached to a distributor, temperature can be manually and automatically controlled (35 to max 50 degrees Celsius), 1 bar pressure

    • Arched zinc galvanised steel construction
    • Operation: toggle lever mechanism – Opening travel: 2,300 mm in 11 seconds
    • Width at Pitch: 2.50 m
    • Height at Pitch: 2.10 m
    • Controlled by ‘dead mans handle’ and warning lights in players tunnel
    • Additional: emergency exits (swing door) and buffers

    • Dressing rooms: 65.5 m²
    • Massage room: 40.5 m²
    • Medical treatment room: 21 m²
    • Equipment room: 4.7 m²
    • Baths: 2.08 m x 5.16 m x 1 m
    • Warm-up area: approx. 110 m2
    • Showers: 22 m²
    • Coaches' dressing rooms: 40 m²
    • Number of lockers: 22
    • Number of showers: 12

    • 106 boxes of varying sizes (up to 32 seats ; altogether 1374 seats )
    • Television coverage of “Fan-TV”
    • Up-to-date match statistics for every game
    • Arena data(e.g. lawn temperature etc.)
    • Wireless and telephone access points
    • Seats for the press (lower tier) and 350 in the “press-club”
    • 5 TV-studios in media area
    • Wireless and phone access throughout (including Mixed Zone and tunnel)
    • During “Bundesliga”-matches press located at 176 seats (table), 98 (no table) and 90 commentator seats
    • During the World Cup 2006: 1,000 (table) , 1,000 (no table) in lower tier ; 600 commentator seats in upper tier

    • Cashless payment in all areas (catering, merchandise, museum and parking)
    • Payment by mobile payment, debit/credit card and ArenaCard (closed card system)
    • Cash payment only possible in shops, museum and selected catering areas
    • Over 350 tills on site:
      • 259 in the catering areas (including 12 in the mobile shops on the esplanade)
      • 48 in merchandise areas (including six in the mobile shops on the esplanade)
      • 5 tills in the museum
      • 38 tills outside the Allianz Arena for ticket sales or topping up the ArenaCard
      • 31 tills within the Allianz Arena for topping up the ArenaCard
    • Over 6 million ArenaCards distributed since opening in 2005, including season tickets and accreditations.

    • Double safety feed connected to different access points (normal access plus back-up access)
    • Network availability up to 99.99 % (FIFA requirement) = 52 minutes downtime/year
    • One netwoerk for all services (telephone, server, video etc.)
    • 6,000 ports in the network
    • Redundant (high availabaility) cabling
    • Triple structure (primary, secondary and tertiary)
    • All services over one cabling, fixed cabling everywhere
    • Two distribution areas (both duplicated) in the north and west of the Arena
    • Network access up to 99.99 % (FIFA requirement) = 6 minutes downtime/year
    • All services via cable access
    • Permanent cabling throughout
    • Two distributor areas (al with back-up) in the Arena East and West
    • Services available vie the Arena network:
      • Voice over IP telephony
      • Ticket counter system & cashless system
      • Stadium access and ticketing
      • Car parking
      • Video and in house technology
      • Other IP services for box holders and third parties
    • Almost total WiFi coverage with standards a/b/g
    • First stadium with 5G mobile technology
    • WLAN stadium infrastructure with 980 hotspots. 80,000 visitors can use the service simultaneously and for free.

    • Centred behind each goal, 10° forward inclination, 40° rear
    • 126 120x120 cm modules + 18 120x80 cm modules
    • Total: 144 LED front modules per wall, 5500 cd/m2
    • Viewing angle: horizontal 140°, vertical 120°
    • Internal 16 bit colour depth
    • Total weight 18 tonnes
    • Main screens: 198.72 m2 (21.6 x 9.20 m = 198.72 m2)
    • Rear screens: 36.8 m2 (9.20 x 4.00 m)
    • Pixel pitch: 6 mm (previously 25 mm)
    • Technology: SMD
    • Resolution: 3240 x 1380
    • Total pixels: 4,471,200 (previously 147,456)

    • System: digital networked signal processors
    • Remote controlled and monitored high-power amplifier
    • Specially manufactured Electro-Voice loudspeaker system
    • Loudspeakers mounted in colour matched steel frames at 42 m
    • 24 loudspeaker clusters, 6 speakers per cluster and 10 further individually mounted units
    • 154 units including 72 sub-woofers
    • Each cluster weighs around 1 t
    • Operation: Remote amplifier (Electro-Voice) in 14 switch cabinets in stadium roof
    • Total amplifier output: approx. 158,000 W
    • Individual climate control, monitoring and surge protection in all cabinets
    • Each cabinet has an automatic fire-extinguishing system
    • ProMatrix System control technology from Dynacord
    • High-powered amplifiers in 7 technical control centres with a total output of approx. 129,000 W
    • Main control centre on Level 7, 21 control centre stations
    • 21 control centre stations linked by a fibre-optic network with multiple redundancy

    • 296 LED high brightness floodlights at a height of 45 m; Technology of FC Bayern partner Philips.
    • Total power: 435,416 Watt; 1,471 Watt (163.483 Im) per spotlight
    • Illuminance: 2,500 Lux (before 1,400 Lux)
    • The light output (luminance) of the construction equates a effort of ca. 121,064 40-watt light bulbs
    • The overall performance of the flood-lighting equates a effort of ca. 10,885 40-watt light bulbs
    • 10 cross-beams with catwalks + additional 8 under the roof with integrated entertainment lightning.

    • Available power: 12 MW from two separate sub-stations
    • Additional battery storage for all safety, sound and control systems
    • Power and data distribution: approx. 4,000,000 cables
    • Switching cabinets: assembled at approx. 750 m
    • Total of approx. 68,000 lighting units provide atmosphere and safety
    • Main system: further approx. 20,000 centrally controlled data points (nodes)

    • Number of ventilation units: 110
    • Air replacement in car park: 5.4 million m³/h
    • Air replacement in stadium: 1.3 million m³/h (max. 1.7 million)
    • HKLS control: 7,000 data points monitored by control centre
    • Cooling capacity: 3.2 MW provided by 1,000 PKW air-conditioning system
    • Heating capacity: 5.2 MW, i.e. as much as 500 family houses
    • 35,000 m C-steel duct (DN 350)
    • 3,600 m NIRO ducts
    • 36,000 m additional cast, composite, synthetic and other ducts.
    • 100,000 m³ square sheet conduits
    • 10,000 m round sheet conduits

    • 22,000 sprinklers
    • 300 dry/wet risers
    • 4,600 fire detectors
    • Approx. 35,000 linear fire detectors
    • Alarm system: 6,200 loudspeakers
    • Access system: 110 turnstiles, fixed and mobile card readers
    • Surveillance system: 90 recording cameras providing court-admissible footage
    • Data transport: approx. 800,000 m fibre optic cable

    • 130 parking spaces for people with disabilities are located on level 3 of garage P1. (Approaching P1 from the public roads is signed) and these parking spaces are closest to the Arena. From this point wheelchair users have unhindered access to their viewing position
    • With the relevant organisers permission wheelchair users may make use of disabled access to staircases TK 2 and TK 3 (access via S0/S1). Lifts available here for Promenade level 2. Special buses available for the return journey.
    • People with severe disabilities are transferred to elevators on level 0 (taking them to their seats) by special-purpose vehicles.
    • Whether a disabled person ID is sufficient and whether people with disabilities can park free of charge has yet to be resolved
    • There is also an unhindered route from the underground station to the Arena. A shuttle service from the the Fröttmaning underground station to the stadium will not be in place at the start of the season in August 2005. Approximately 400 superior seats have been allocated for about 200 wheelchair users and their companions on the long sides of the Arena on the top rows of the lower tier, allowing room for manoeuvring wheelchairs.
    • The entire level 2 can also be declared as “barrier-less” for people with disabilities. This level includes kiosks, support services for handicapped people and specially equipped toilets. Specially reserved lifts are available for changing levels in the North and South stands
    • Since the start of the 2005/2006 Bundesliga season mobile headsets with play comments for blind persons are available
    • 20 pairs of subtitle glasses available to people with impaired hearing. A specially developed smartphone app uses Bluetooth to transmit the stadium commentary to the augmented reality glasses as live subtitles. The text appears in the lower visual field of the glasses.

    • The Allianz Arena has more than 25 disabled toilets, including 16 on Level 2, and one toilet for the severely disabled, equipped with a special lifter.

    • Disabled Tours for individual visitors start at 14.00 (2 pm) on Thursdays and Sundays when there is no match.

    • Seven public entry areas on Level 2, six of them for home fans (four in the south stand and two in the north stand) plus an away entrance with its own car park. There are also various hospitality and accreditation entrances.
    • In total there are 207 readers built in (contactless thanks to state-of-the-art chip technology), including 159 turnstiles and 11 gates for disabled access, plus 40 card readers in the concourses
    • 55 mobile scanners for access control
    • Access is either by printed ticket (QR code or barcode) or by chip technology (smartphone, chip card)

    The following forms are currently used:

    • Chip cards for season ticket holders and accredited media
    • Mobile@Tickets via NFC (Apple) or QR code
    • print@home
    • Hard ticket (classic paper ticket)
    • 38 ticket offices (32 in the service areas in the south of the Arena, four in the north and two at the away entrance)

News
